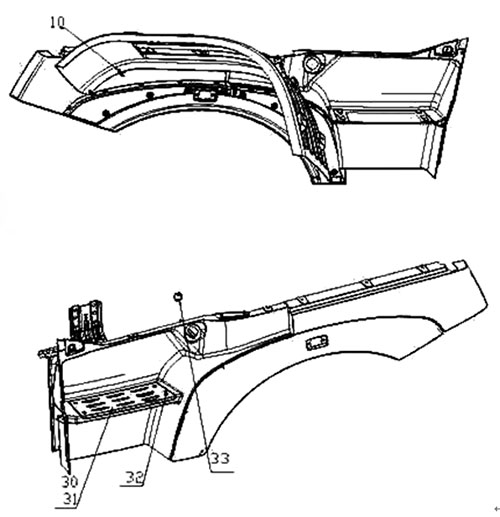

AUCUN | PART NO | quantité | nom de la partie | 名称 |
1 | AZ1664230007 | 1 | n’abaisser, couverture gauche pour plancher haut | 高地板低位左前翼子板 |
2 | AZ1664230006 | 1 | inférieure , couverture droite pour plancher haut | 高地板低位右前翼子板(与左件对称) |
3 | AZ1664230009 | 1 | long, couverture arrière gauche pour plancher haut | 高地板左翼子板后段 ( 长 ) |
4 | AZ1664230008 | 1 | long, couverture arrière droit pour plancher haut | 高地板右翼子板后段(长)(与左件对称) |
5 | AZ1664230011 | 1 | gauche-couvercle de l’appareil | 左翼子板装饰板 |
6 | AZ1664230012 | 1 | lright couverture panneau | 右翼子板装饰板(与左件对称) |
7 | AZ1664230057 | 16 | roseau écrou | 簧片螺母 |
8 | Q150B0820 | 14 | hexagone vis | 六角头螺栓 |
9 | Q40108 | 14 8w81 81 x 1 | rondelle | 平垫圈 |
10 | Q2204816 | 4 | vis | 十字槽盘头自攻螺钉和平垫圈组合件 |
11 | AZ1664233025 | 1 | moyen-breaket gauche pour plancher haut | 高地板翼子板左中支架总成 |
12 | AZ1664233155 | 1 | moyen-breaket droit pour plancher haut | 高地板翼子板右中支架总成 |
13 | Q150B1030 | 10 | à six pans creux vis | 六角头螺栓 |
14 | Q40110 | 10 | rondelle | 平垫圈 |
15 | AZ1664233030 | 1 | avant-breaket parti pour plancher haut | 高地板翼子板左前支架总成 |
16 | AZ1664233032 | 1 | recto-breaket droit pour plancher haut | 高地板翼子板右前支架总成(与左件对称) |
17 | Q150B0820 | 6 | à six pans creux vis | 六角头螺栓 |
18 | Q40108 | 6 | rondelle | 平垫圈 |
19 | AZ1664233035 | 1 | arrière-breaket gauche pour plancher haut | 高地板翼子板左后支架总成 |
20 | AZ1664233036 | 1 | arrière-breaket droit pour plancher haut | 高地板翼子板右后支架总成(与左件对称) |
21 | Q150B0820 | 4 | à six pans creux vis | 六角头螺栓 |
22 | Q40108 | 4 | rondelle | 平垫圈 |
23 | AZ1664230061 | gauche inférieur, U-membre | 高地板低位踏板左托架总成 | |
24 | AZ1664230062 | droite inférieure, U-membre | 高地板低位踏板右托架总成(与左件对称) | |
25 | Q150B0820 | 14 | à tête hexagonale vis | 六角头螺栓 |
26 | Q40108 | 14 | rondelle | 平垫圈 |
27 | AZ1664230140 | 1 | seringue breaket gauche | 高地板洗涤器左支架总成 |
28 | Q150B0820 | 5 | hexagone vis | 六角头螺栓 |
29 | Q40108 | 5 | rondelle | 平垫圈 |
30 | WG1664230081 | 1 | plaque inférieure gauche pour plancher haut | 高地板低位左防滑板 |
31 | WG1664230082 | 1 | plaque inférieure droite pour plancher haut | 高地板低位右防滑板(与左件对称) |
32 | Q2540820 | 8 | vis | 十字槽沉头螺钉 |
33 | WG1664230051 | 2 | Couvrir | 堵盖 |
34 | AZ1664230133 | 1 | gauche breaket | 翼子板后段左支架 |
35 | AZ1664230134 | 1 | bonne breaket | 翼子板后段右支架(与左件对称) |
36 | AZ1664233225 | 1 | gauche breaket | 左固定支架 |
37 | AZ1664233226 8w 8181 x 1 | 1 | bonne breaket | 右固定支架(与左件对称) |
